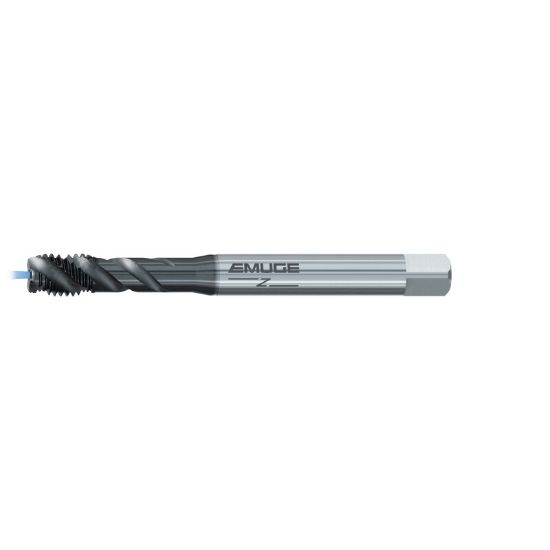

EMUGE BU99C410.5011 Tap 3/8-16.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Coolant Carbide HSSE GLT-1

ISO: BU99C410.5011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU99C410.5011
Delivery date: 3-5 days
$101.64

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Coating GLT-1
Dimensional Specifications
Flutes/Inserts 3
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Thread Pitch 16.00TPI
Thread Limit 3B
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Overall Len 3.9370 100.00MM
Tap Type Bottoming
Thread Size 3/8"
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
Medical Yes
Aerospace Yes
