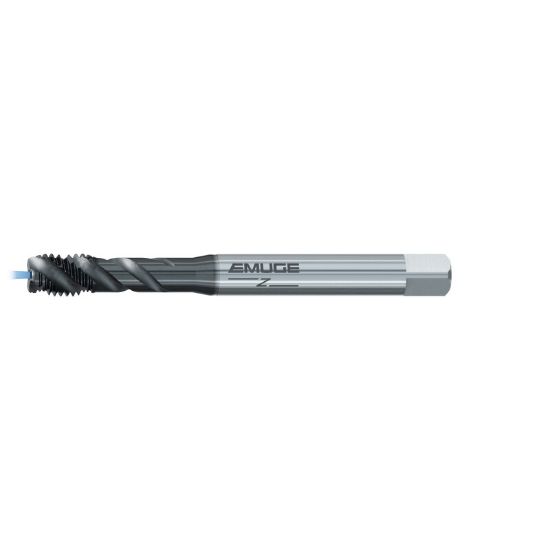

EMUGE BU99C410.5010 Tap 5/16-18.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Coolant HSSE GLT-1

ISO: BU99C410.5010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU99C410.5010
Delivery date: 3-5 days
$93.17

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating GLT-1
Dimensional Specifications
Tap Square 0.2380
Thread Size 5/16"
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Tap Type Bottoming
Thread Pitch 18.00TPI
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Limit 3B
Flutes/Inserts 3
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 3.5430 89.99MM
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
