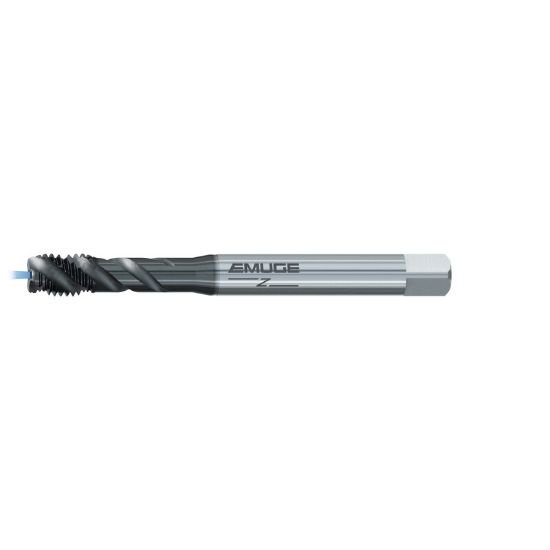

Picture of Emuge BU99C410.5041 Tap Bottoming No.10-32.00TPI 3B NF/UNF/UNEF DINSI Coolant HSSE GLT-1

Emuge BU99C410.5041 Tap Bottoming No.10-32.00TPI 3B NF/UNF/UNEF DINSI Coolant HSSE GLT-1

Part Number: EMUBU99C410.5041 ISO: BU99C410.5041
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$90.75
SKU: 1156112

Description

EMUGE BU99C410.5041 No.10x32.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE GLT-1 3B NF/UNF/UNEF Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 2.7560 70.00MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Thread Pitch 32.00TPI
Thread Size No.10
Tap Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Performance & Capacity
Cut Rating Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating GLT-1
Standards & Identification
Dimension Standard DINSI
