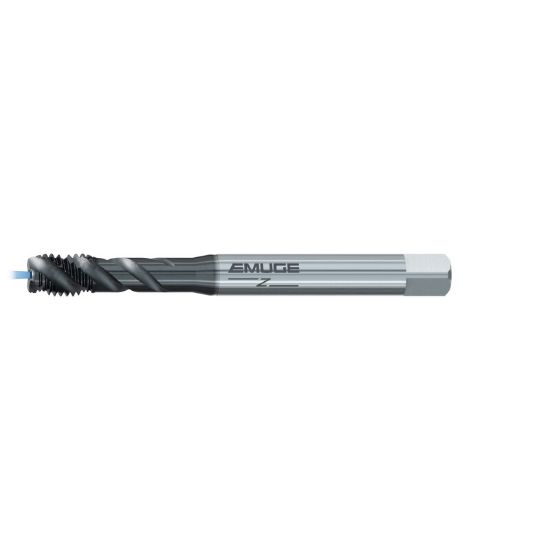

EMUGE BU99C400.5045 Tap 3/8-24.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Coolant Carbide HSSE GLT-1

ISO: BU99C400.5045

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU99C400.5045
Delivery date: 3-5 days
$108.71

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Coating GLT-1
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Thread Limit 2B
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Overall Len 3.9370 100.00MM
Tap Type Bottoming
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Size 3/8"
Flute Direction R - Right
Dimension Standard DINSI
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flutes/Inserts 3
Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
