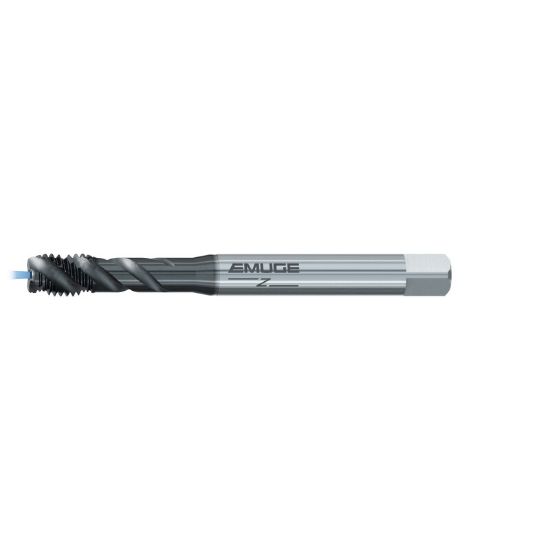

EMUGE BU99C400.5011 Tap 3/8-16.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Coolant Carbide HSSE GLT-1

ISO: BU99C400.5011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU99C400.5011
Delivery date: 3-5 days
$101.64

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating GLT-1
Made In USA No
Dimensional Specifications
Thread Limit 2B
Machine Side Connection Type Tap Collet
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Flutes/Inserts 3
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Cut Rating High Temp, Stainless Steel
Thread Size 3/8"
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Tool Material Steel
Overall Len 3.9370 100.00MM
Tap Type Bottoming
Thread Pitch 16.00TPI
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
