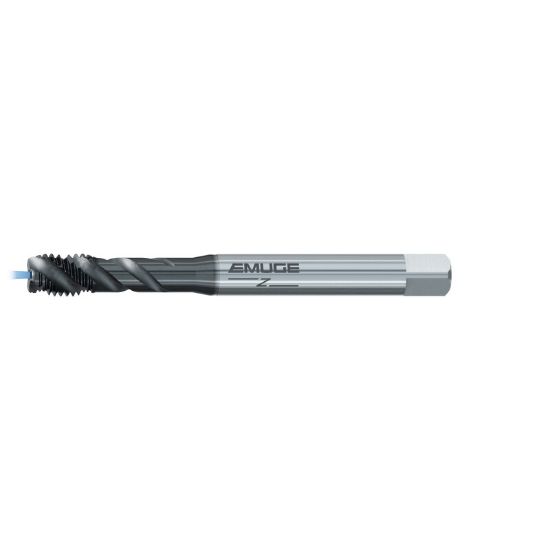

EMUGE BU99C400.5009 Tap 1/4-20.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Coolant HSSE GLT-1

ISO: BU99C400.5009

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU99C400.5009
Delivery date: 3-5 days
$80.44

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Coating GLT-1
Shipping State Massachusetts
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Pitch 20.00TPI
Thread Type NC/UNC
Dimension Standard DINSI
Overall Len 3.1490 79.98MM
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Flutes/Inserts 3
Thread Size 1/4"
Thread Limit 2B
Shank/Pilot Dia 0.2550 6.48MM
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
