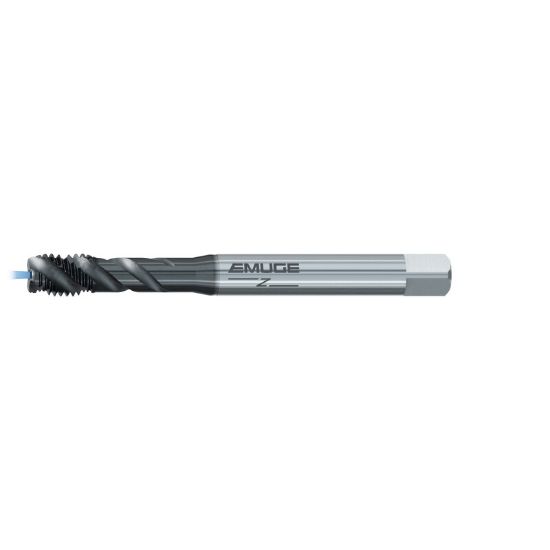

EMUGE BU99C400.5007 Tap Bottoming No.10-24.00TPI 2B NC/UNC DINSI Coolant HSSE GLT-1

ISO: BU99C400.5007

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU99C400.5007
Delivery date: 3-5 days
$77.02

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Coating GLT-1
Shipping State Massachusetts
Made In USA No
Package Size 1
Dimensional Specifications
Thread Pitch 24.00TPI
Flutes/Inserts 3
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Machine Side Connection Type Tap Collet
Thread Size No.10
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Type NC/UNC
Dimension Standard DINSI
Shank/Pilot Dia 0.1940 4.93MM
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Thread Limit 2B
Overall Len 2.7560 70.00MM
Tap Square 0.1520
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
