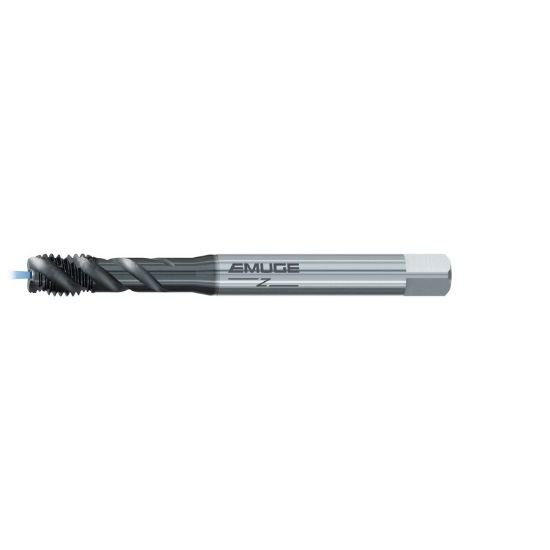

Picture of Emuge BU99C400.5011 Tap 3/8-16.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Coolant Carbide HSSE GLT-1

Emuge BU99C400.5011 Tap 3/8-16.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Coolant Carbide HSSE GLT-1

Part Number: EMUBU99C400.5011 ISO: BU99C400.5011
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$119.55
SKU: 1156087

Description

EMUGE BU99C400.5011 3/8"x16.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE GLT-1 2B NC/UNC Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Thread Pitch 16.00TPI
Thread Size 3/8"
Tap Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Square 0.2860
Performance & Capacity
Cut Rating Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating GLT-1
Standards & Identification
Dimension Standard DINSI
