  • EMUGE BU94C400.5041 Tap Mod Bottom No.10-32.00TPI 2B NF/UNF/UNEF DINSI Coolant HSSE GLT-1

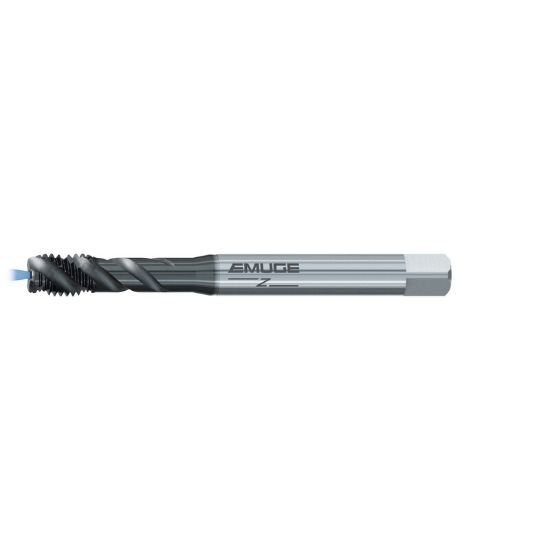

Picture of EMUGE BU94C400.5041 Tap Mod Bottom No.10-32.00TPI 2B NF/UNF/UNEF DINSI Coolant HSSE GLT-1

EMUGE BU94C400.5041 Tap Mod Bottom No.10-32.00TPI 2B NF/UNF/UNEF DINSI Coolant HSSE GLT-1

ISO: BU94C400.5041

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU94C400.5041
Delivery date: 3-5 days
$77.91

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Cut Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Massachusetts
Coating GLT-1
Made In USA No
Package Size 1
Dimensional Specifications
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Thread Size No.10
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Machine Side Connection Type Tap Collet
Tool Material Steel
Flutes/Inserts 3
Flute Direction R - Right
Length Type Standard
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1940 4.93MM
Tap Chamfer 2.0P-3.0P
Thread Limit 2B
Overall Len 2.7560 70.00MM
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
