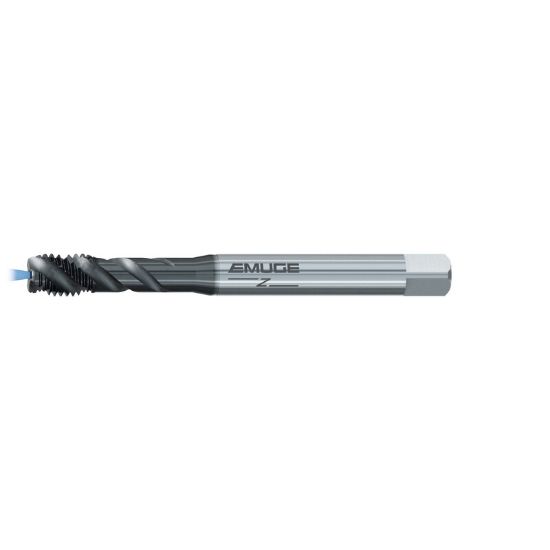

EMUGE BU94C400.5010 Tap 5/16-18.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant HSSE GLT-1

ISO: BU94C400.5010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU94C400.5010
Delivery date: 3-5 days
$94.10

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating GLT-1
Dimensional Specifications
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Pitch 18.00TPI
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Flutes/Inserts 3
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Tap Square 0.2380
Thread Limit 2B
Thread Size 5/16"
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 3.5430 89.99MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
