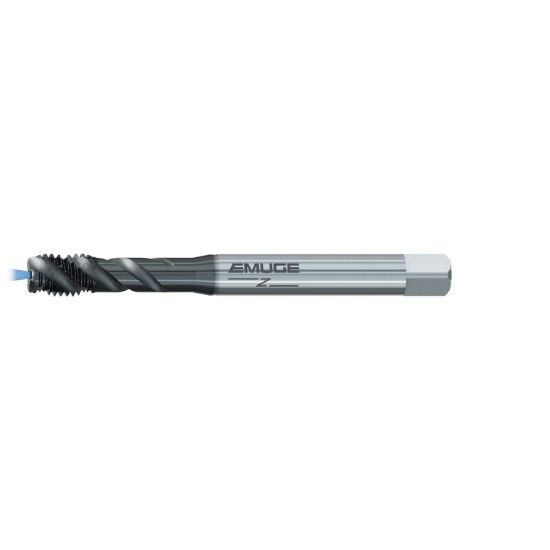

EMUGE BU94C400.5009 Tap 1/4-20.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Coolant HSSE GLT-1

ISO: BU94C400.5009

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU94C400.5009
Delivery date: 3-5 days
$81.24

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Coating GLT-1
Dimensional Specifications
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Thread Size 1/4"
Thread Limit 2B
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Pitch 20.00TPI
Overall Len 3.1490 79.98MM
Tap Chamfer 2.0P-3.0P
Shank/Pilot Dia 0.2550 6.48MM
Machine Side Connection Type Tap Collet
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
