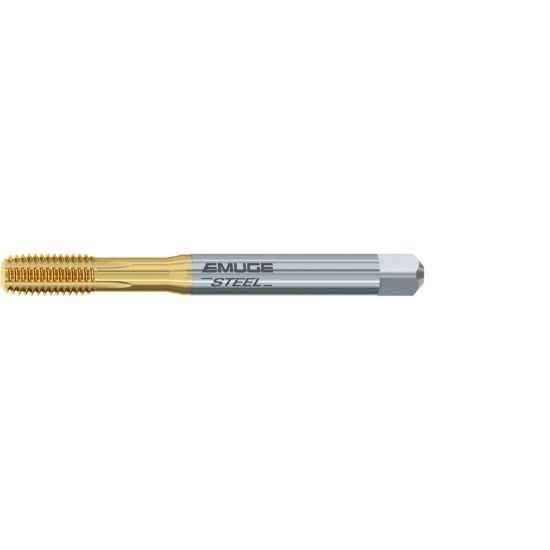

EMUGE BU93F300.5715 Tap 3/8-24.00TPI Bottoming LK-UNF DINSI 1.5P-2.0P Cobalt HSSE TiN

ISO: BU93F300.5715

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU93F300.5715
Delivery date: 3-5 days
$115.43

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Blind Hole Tapping, Spiral Lock Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Made In USA No
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Tap Square 0.2860
Tap Style Spiral Lock Roll Form
Tap Chamfer 1.5P-2.0P
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Tap Type Bottoming
Thread Size 3/8"
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3810 9.68MM
Thread Limit BT
Thread Type LK-UNF
Tool Material Steel
Thread Pitch 24.00TPI
Drill Range 8.6902 220.73MM
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
