  • EMUGE BU93F300.5710 Tap No.8-36.00TPI Bottoming LK-UNF DINSI 1.5P-2.0P HSS HSSE TiN

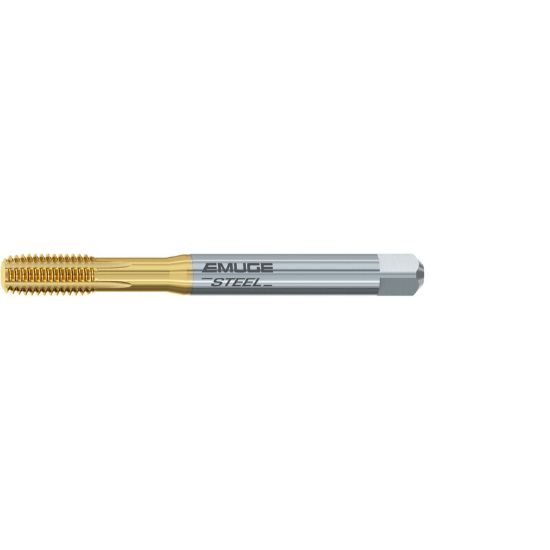

Picture of EMUGE BU93F300.5710 Tap No.8-36.00TPI Bottoming LK-UNF DINSI 1.5P-2.0P HSS HSSE TiN

EMUGE BU93F300.5710 Tap No.8-36.00TPI Bottoming LK-UNF DINSI 1.5P-2.0P HSS HSSE TiN

ISO: BU93F300.5710

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU93F300.5710
Delivery date: 3-5 days
$78.03

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Blind Hole Tapping, Spiral Lock Tapping, Roll Form Tapping, Bottom Tapping, Tapping
Coating TiN
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Dimensional Specifications
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1680 4.27MM
Tap Square 0.1310
Thread Size No.8
Thread Pitch 36.00TPI
Machine Side Connection Type Tap Collet
Thread Limit BT
Thread Type LK-UNF
Tool Material Steel
Overall Len 2.4850 63.12MM
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Drill Range 0.1472 3.74MM
Tap Style Spiral Lock Roll Form
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Automotive Yes
Agricultural YES
Energy Yes
