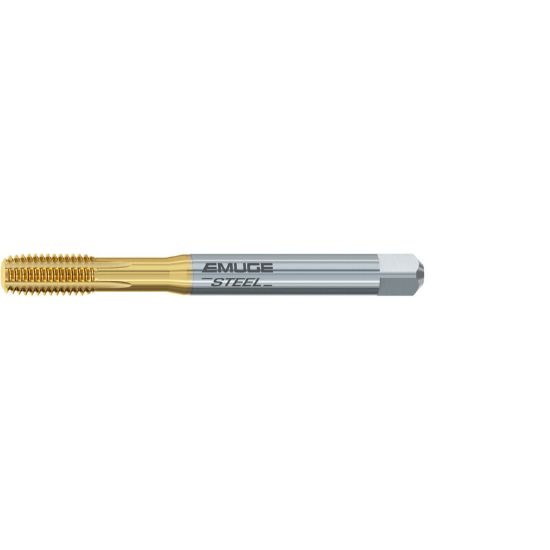

EMUGE BU93F300.5664 Tap 3/8-16.00TPI Bottoming LK-UNC DINSI 1.5P-2.0P Cobalt HSSE TiN

ISO: BU93F300.5664

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU93F300.5664
Delivery date: 3-5 days
$100.82

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Massachusetts
Application Spiral Lock Tapping, Blind Hole Tapping, Bottom Tapping, Tapping, Roll Form Tapping
Made In USA No
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Square 0.2860
Tap Chamfer 1.5P-2.0P
Thread Limit BT
Tool Material Steel
Thread Type LK-UNC
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Tap Type Bottoming
Thread Pitch 16.00TPI
Thread Size 3/8"
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3810 9.68MM
Drill Range 0.3268 8.30MM
Tap Style Spiral Lock Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
