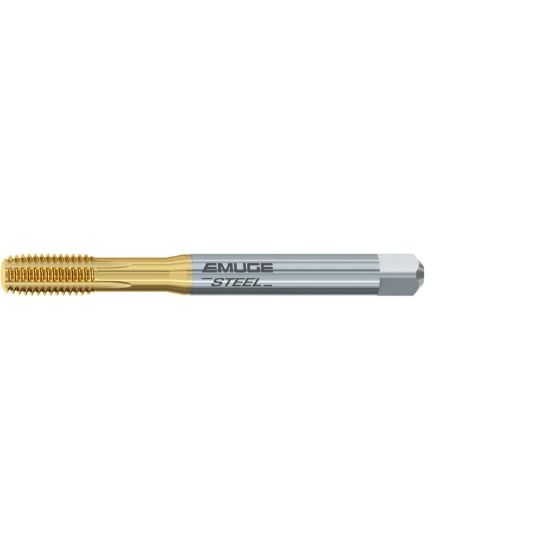

EMUGE BU93F300.5659 Tap No.8-32.00TPI Bottoming LK-UNC DINSI 1.5P-2.0P HSS HSSE TiN

ISO: BU93F300.5659

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU93F300.5659
Delivery date: 3-5 days
$75.43

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Lock Tapping, Bottom Tapping, Tapping, Roll Form Tapping, Blind Hole Tapping
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Coating TiN
Made In USA No
Dimensional Specifications
Thread Limit BT
Tool Material Steel
Overall Len 2.4850 63.12MM
Tap Style Spiral Lock Roll Form
Tap Chamfer 1.5P-2.0P
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Tap Square 0.1310
Thread Pitch 32.00TPI
Drill Range 0.1413 3.59MM
Thread Size No.8
Machine Side Connection Type Tap Collet
Thread Type LK-UNC
Flute Direction R - Right
Shank/Pilot Dia 0.1680 4.27MM
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Agricultural YES
Energy Yes
Automotive Yes
