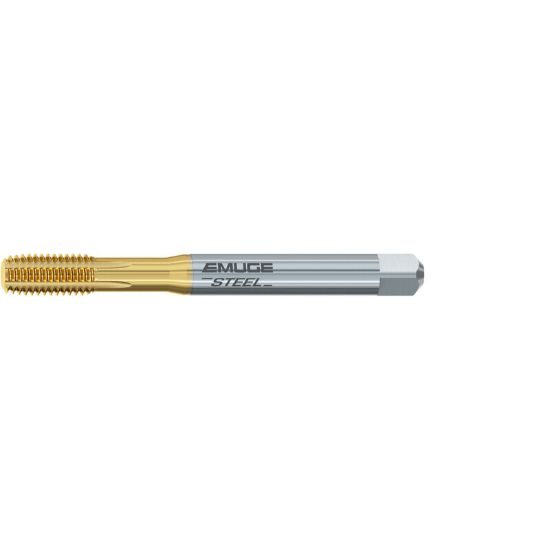

Picture of EMUGE BU93F300.5656 Tap No.4-40.00TPI Bottoming LK-UNC DINSI 1.5P-2.0P HSS HSSE TiN

EMUGE BU93F300.5656 Tap No.4-40.00TPI Bottoming LK-UNC DINSI 1.5P-2.0P HSS HSSE TiN

ISO: BU93F300.5656

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU93F300.5656
Delivery date: 3-5 days
$86.94

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Blind Hole Tapping, Bottom Tapping, Tapping, Roll Form Tapping, Spiral Lock Tapping
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Style Spiral Lock Roll Form
Tap Chamfer 1.5P-2.0P
Thread Type LK-UNC
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Tap Type Bottoming
Thread Pitch 40.00TPI
Overall Len 2.2050 56.01MM
Drill Range 0.0965 2.45MM
Thread Limit BT
Tool Material Steel
Tap Square 0.1100
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
