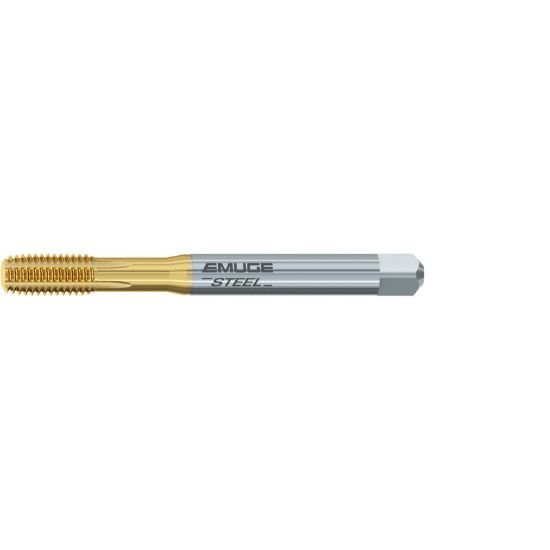

Picture of Emuge BU93F300.5658 Tap No.6-32.00TPI Bottoming LK-UNC DINSI 1.5P-2.0P Cobalt HSSE TiN

Emuge BU93F300.5658 Tap No.6-32.00TPI Bottoming LK-UNC DINSI 1.5P-2.0P Cobalt HSSE TiN

Part Number: EMUBU93F300.5658 ISO: BU93F300.5658

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158602
Vendor: Sussex Tool and Supply
$79.05
EMUGE BU93F300.5658 No.6x32.00TPI Spiral Lock Roll Form Bottoming 1.5P-2.0P HSSE TiN BT LK-UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 2.2050 56.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 32.00TPI
Thread Type LK-UNC
Flute Direction RIGHT
Thread Size No.6
Thread Limit BT
Tap Style Spiral Lock Roll Form
Tap Type Bottoming
Dimension Standard DINSI
Tap Drill Range 0.1142 2.90MM
Tap Square 0.1100
Tap Chamfer 1.5P-2.0P
