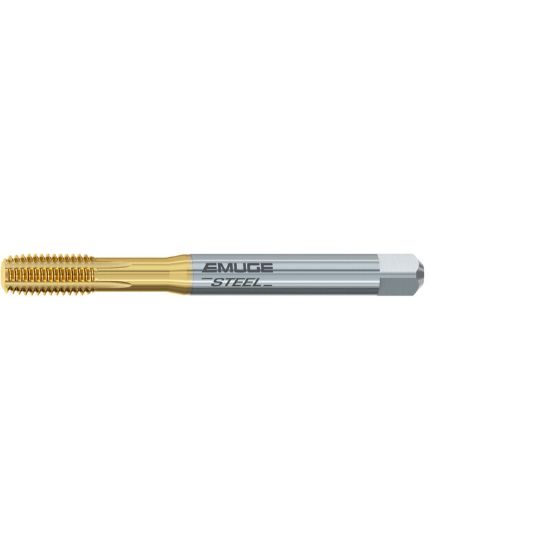

EMUGE BU931400.5009 Tap 1/4-20.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE TiN

ISO: BU931400.5009

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU931400.5009
Delivery date: 3-5 days
$59.47

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Shipping State Massachusetts
Application Roll Form Tapping, Bottom Tapping, Tapping, Blind Hole Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Length Type Standard
Tap Type Bottoming
Thread Pitch 20.00TPI
Thread Type NC/UNC
Dimension Standard DINSI
Overall Len 3.1490 79.98MM
Tap Style Roll Form
Cut Rating <40HRC Steel
Tap Square 0.1910
Tap Chamfer 1.5P-2.0P
Flutes/Inserts 3
Drill Range 0.2244 5.70MM - 0.2311 5.87MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Thread Size 1/4"
Thread Limit 2B
Flute Direction STRAIGHT
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
