  • EMUGE BU931400.5001 Tap No.2-56.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE TiN

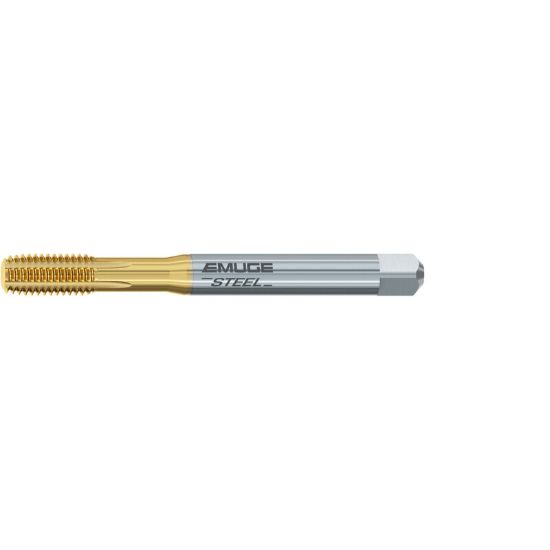

Picture of EMUGE BU931400.5001 Tap No.2-56.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE TiN

EMUGE BU931400.5001 Tap No.2-56.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE TiN

ISO: BU931400.5001

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU931400.5001
Delivery date: 3-5 days
$77.55

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Coating TiN
Made In USA No
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Thread Limit 2B
Flute Direction STRAIGHT
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.0768 1.95MM - 0.0791 2.01MM
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tool Material Steel
Tap Square 0.1100
Tap Type Bottoming
Thread Pitch 56.00TPI
Overall Len 1.7720 45.01MM
Tap Chamfer 1.5P-2.0P
Thread Size No.2
Thread Type NC/UNC
Dimension Standard DINSI
Length Type Standard
Tap Style Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
