  • EMUGE BU92F000.5043 Tap 1/4-28.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE TiN

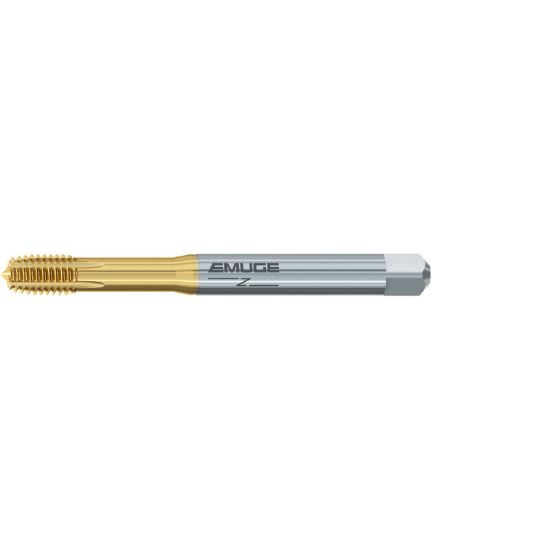

Picture of EMUGE BU92F000.5043 Tap 1/4-28.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE TiN

EMUGE BU92F000.5043 Tap 1/4-28.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE TiN

ISO: BU92F000.5043

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU92F000.5043
Delivery date: 3-5 days
$70.65

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Mod Bottom Tapping, Tapping
Made In USA No
Coating TiN
Package Size 1
Shipping State Massachusetts
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 28.00TPI
Tool Material Steel
Length Type Standard
Thread Size 1/4"
Thread Limit 2B
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Dimension Standard DINSI
Overall Len 3.1490 79.98MM
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Cut Rating <40HRC Steel
Drill Range 0.2315 5.88MM - 0.2362 6.00MM
Tap Square 0.1910
Tap Type Mod Bottom
Thread Type NF/UNF/UNEF
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
