  • EMUGE BU92F000.5011 Tap 3/8-16.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE TiN

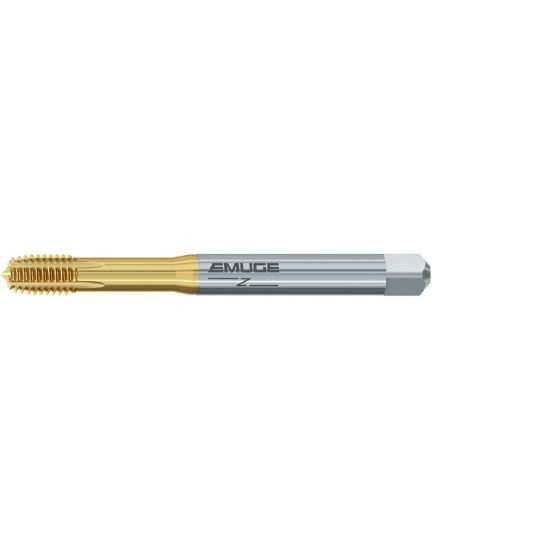

Picture of EMUGE BU92F000.5011 Tap 3/8-16.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE TiN

EMUGE BU92F000.5011 Tap 3/8-16.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE TiN

ISO: BU92F000.5011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU92F000.5011
Delivery date: 3-5 days
$87.72

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Coating TiN
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Tap Square 0.2860
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Overall Len 3.9370 100.00MM
Flute Direction STRAIGHT
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Pitch 16.00TPI
Thread Limit 2B
Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Thread Size 3/8"
Thread Type NC/UNC
Dimension Standard DINSI
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Tap Style Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
