  • EMUGE BU92F000.5005 Tap Mod Bottom No.6-32.00TPI 2B NC/UNC DINSI HSSE TiN

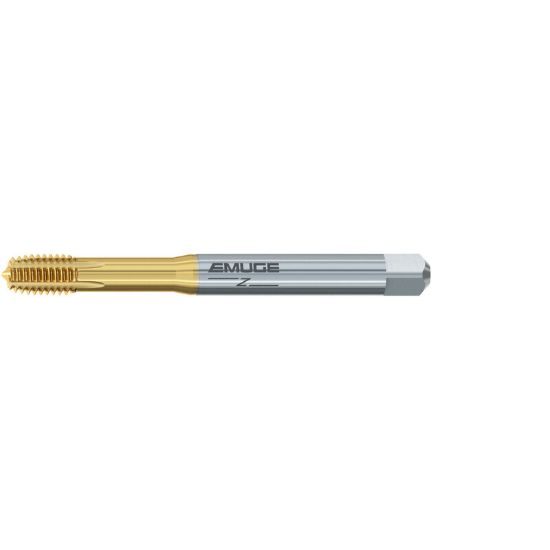

Picture of EMUGE BU92F000.5005 Tap Mod Bottom No.6-32.00TPI 2B NC/UNC DINSI HSSE TiN

EMUGE BU92F000.5005 Tap Mod Bottom No.6-32.00TPI 2B NC/UNC DINSI HSSE TiN

ISO: BU92F000.5005

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU92F000.5005
Delivery date: 3-5 days
$60.87

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Mod Bottom Tapping, Tapping
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Thread Size No.6
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Thread Type NC/UNC
Dimension Standard DINSI
Length Type Standard
Thread Limit 2B
Overall Len 2.2050 56.01MM
Thread Pitch 32.00TPI
Flute Direction STRAIGHT
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.1138 2.89MM - 0.1260 3.20MM
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tool Material Steel
Tap Square 0.1100
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
