  • EMUGE BU92F000.5004 Tap Mod Bottom No.5-40.00TPI 2B NC/UNC DINSI HSSE TiN

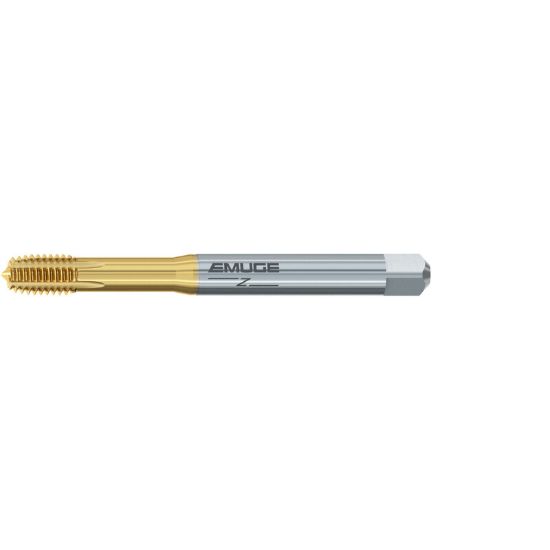

Picture of EMUGE BU92F000.5004 Tap Mod Bottom No.5-40.00TPI 2B NC/UNC DINSI HSSE TiN

EMUGE BU92F000.5004 Tap Mod Bottom No.5-40.00TPI 2B NC/UNC DINSI HSSE TiN

ISO: BU92F000.5004

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU92F000.5004
Delivery date: 3-5 days
$68.37

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, Tapping, Roll Form Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Coating TiN
Dimensional Specifications
Thread Pitch 40.00TPI
Thread Limit 2B
Overall Len 2.2050 56.01MM
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size No.5
Thread Type NC/UNC
Dimension Standard DINSI
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Drill Range 0.1122 2.85MM - 0.1154 2.93MM
Tap Square 0.1100
Length Type Standard
Flute Direction STRAIGHT
Shank/Pilot Dia 0.1410 3.58MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
