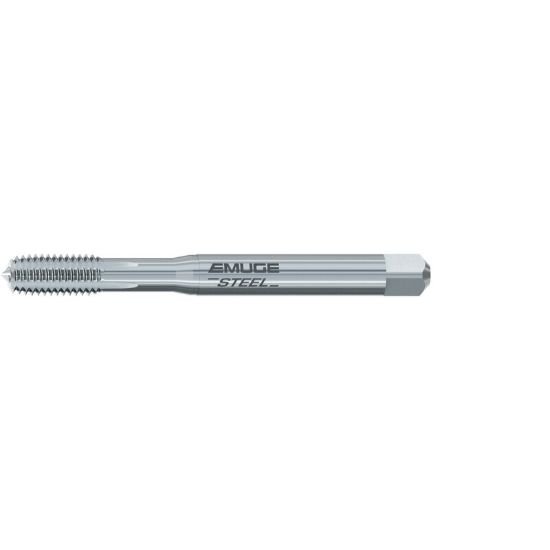

Emuge BU921000.5039 Tap No.6-40.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE Nitride

Part Number: EMUBU921000.5039 ISO: BU921000.5039

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157076
$48.09
EMUGE BU921000.5039 No.6x40.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE Nitride 2B NF/UNF/UNEF Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating Nitride
Overall Length 2.2050 56.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 40.00TPI
Thread Type NF/UNF/UNEF
Flute Direction STRAIGHT
Thread Size No.6
Thread Limit 2B
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.1252 3.18MM - 0.1283 3.26MM
Tap Square 0.1100
Tap Chamfer 2.0P-3.0P
