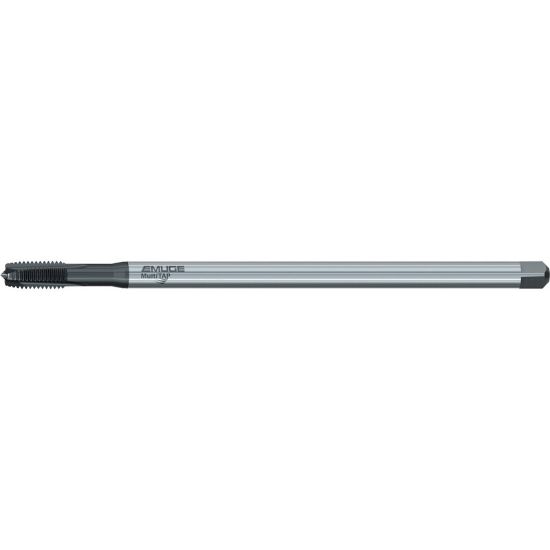

EMUGE BU797300.5011 Tap 3/8-16.00TPI Plug NC/UNC DINSI 4P-5P Carbide HSSE Nitride + Steam Oxide

ISO: BU797300.5011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU797300.5011
Delivery date: 3-5 days
$117.18

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Coating Nitride + Steam Oxide
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Thread Pitch 16.00TPI
Tap Type Plug
Thread Type NC/UNC
Dimension Standard DINSI
Shank/Pilot Dia 0.3810 9.68MM
Overall Len 7.8740 200.00MM
Length Type Long
Thread Size 3/8"
Thread Limit 2B/3B
Tap Square 0.2860
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tool Material Steel
Tap Chamfer 4P-5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
