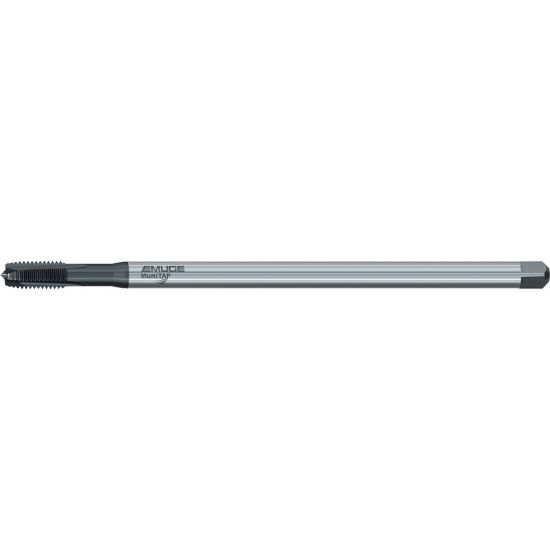

EMUGE BU797300.5010 Tap 5/16-18.00TPI Plug NC/UNC DINSI 4P-5P HSSE Nitride + Steam Oxide

ISO: BU797300.5010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU797300.5010
Delivery date: 3-5 days
$103.32

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Massachusetts
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating Nitride + Steam Oxide
Made In USA No
Dimensional Specifications
Tap Square 0.2380
Tap Type Plug
Thread Type NC/UNC
Thread Limit 2B/3B
Dimension Standard DINSI
Length Type Long
Thread Pitch 18.00TPI
Machine Side Connection Type Tap Collet
Overall Len 7.0870 180.01MM
Flutes/Inserts 3
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Tap Chamfer 4P-5P
Thread Size 5/16"
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
