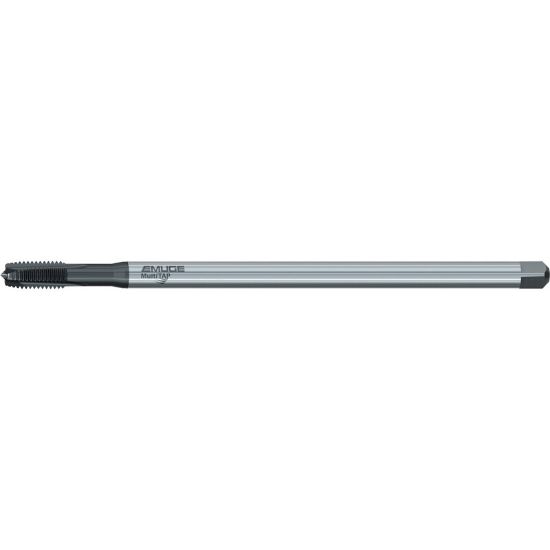

EMUGE BU797300.5005 Tap Plug No.6-32.00TPI 2B/3B NC/UNC DINSI HSSE Nitride + Steam Oxide

ISO: BU797300.5005

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU797300.5005
Delivery date: 3-5 days
$52.09

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating Nitride + Steam Oxide
Shipping State Massachusetts
Dimensional Specifications
Flute Direction STRAIGHT
Shank/Pilot Dia 0.1410 3.58MM
Tap Style Cut Spiral Point
Tap Square 0.1100
Thread Type NC/UNC
Thread Limit 2B/3B
Dimension Standard DINSI
Length Type Long
Thread Pitch 32.00TPI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Overall Len 4.4090 111.99MM
Tap Type Plug
Thread Size No.6
Flutes/Inserts 3
Tool Material Steel
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Tap Chamfer 4P-5P
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
