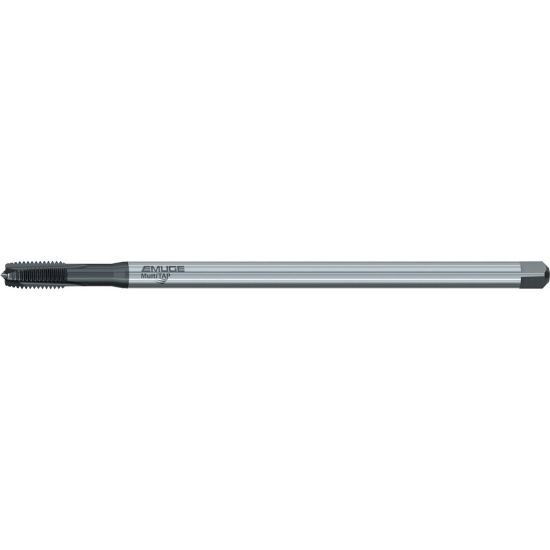

Emuge BU797300.5040 Tap Plug No.8-36.00TPI 2B/3B NF/UNF/UNEF DINSI HSSE Nitride + Steam Oxide Pulley Long
Emuge BU797300.5040 Tap Plug No.8-36.00TPI 2B/3B NF/UNF/UNEF DINSI HSSE Nitride + Steam Oxide Pulley Long
Part Number: EMUBU797300.5040 ISO: BU797300.5040
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
EMUGE
SKU:
1157671
Vendor:
Sussex Tool and Supply
$49.97
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
EMUGE BU797300.5040 No.8x36.00TPI Cut Spiral Point Plug 4P-5P HSSE Nitride + Steam Oxide 2B/3B NF/UNF/UNEF Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name
Attribute value
Shipping State
MASSACHUSETTS
Made In USA
NO
Cutter Type
Tapping
Tool Material
Steel
Cutting Edge Mat
HSSE
Machine Side Connection Type
Tap Collet
Cut Rating
Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating
Nitride + Steam Oxide
Overall Length
4.9210 124.99MM
Coolant Thru
Non Coolant
Shank/Pilot Dia
0.1680 4.27MM
Flutes/Inserts
3
Type Of Tool
Tap
Length Type
LONG
Performance Rating
High Performance
Thread Pitch
36.00TPI
Thread Type
NF/UNF/UNEF
Flute Direction
STRAIGHT
Thread Size
No.8
Thread Limit
2B/3B
Tap Style
Cut Spiral Point
Tap Type
Plug
Dimension Standard
DINSI
Tap Drill Range
0.1350 3.43MM - 0.1421 3.61MM
Tap Square
0.1310
Tap Chamfer
4P-5P
