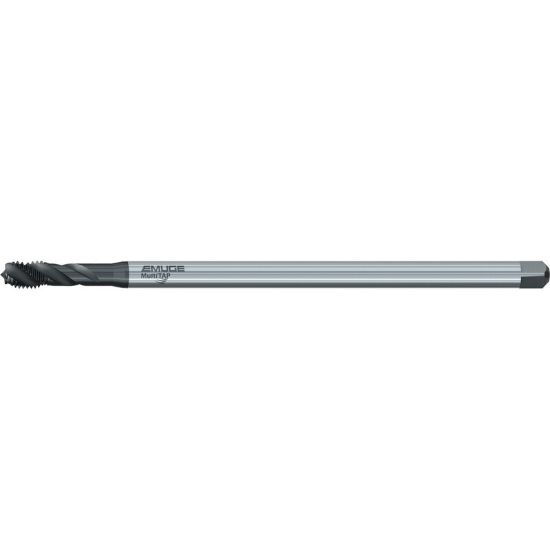

EMUGE BU783200.5045 Tap 3/8-24.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Carbide HSSE Oxide + TiN

ISO: BU783200.5045

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU783200.5045
Delivery date: 3-5 days
$126.63

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating Oxide + TiN
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Dimensional Specifications
Thread Size 3/8"
Thread Limit 2B/3B
Dimension Standard DINSI
Shank/Pilot Dia 0.3810 9.68MM
Length Type Long
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Overall Len 7.0870 180.01MM
Tool Material Steel
Flute Direction R - Right
Thread Pitch 24.00TPI
Flutes/Inserts 3
Thread Type NF/UNF/UNEF
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
