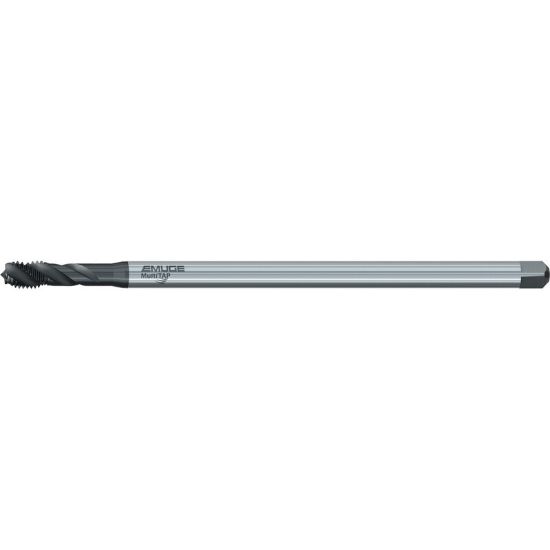

EMUGE BU783200.5044 Tap 5/16-24.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Cobalt HSSE Oxide + TiN

ISO: BU783200.5044

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU783200.5044
Delivery date: 3-5 days
$112.23

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Massachusetts
Package Size 1
Coating Oxide + TiN
Performance Rating High Performance
Dimensional Specifications
Thread Size 5/16"
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Length Type Long
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Square 0.2380
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Overall Len 7.0870 180.01MM
Tap Type Mod Bottom
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flutes/Inserts 3
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
