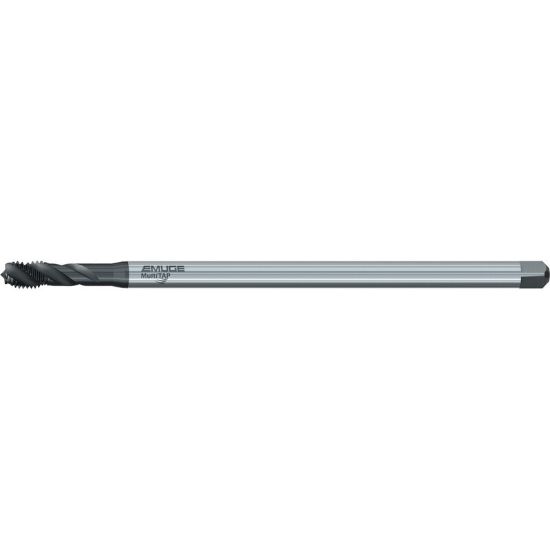

EMUGE BU783200.5039 Tap Mod Bottom No.6-40.00TPI 2B/3B NF/UNF/UNEF DINSI HSSE Oxide + TiN

ISO: BU783200.5039

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU783200.5039
Delivery date: 3-5 days
$59.18

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Coating Oxide + TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Thread Size No.6
Tool Material Steel
Tap Square 0.1100
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 4.4090 111.99MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Length Type Long
Drill Range 0.1118 2.84MM - 0.1181 3.00MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Pitch 40.00TPI
Thread Type NF/UNF/UNEF
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
