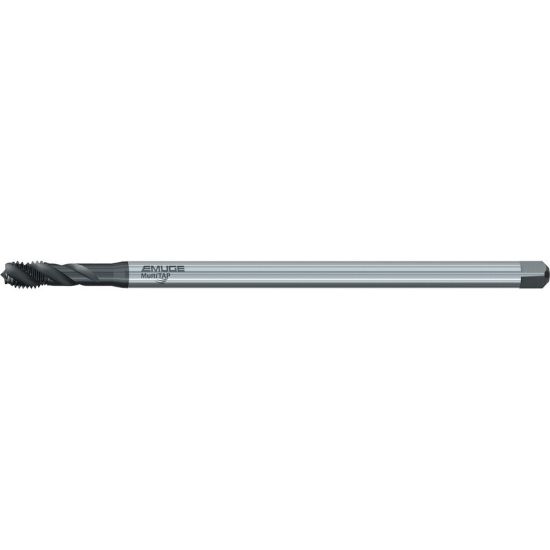

EMUGE BU783200.5011 Tap 3/8-16.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Carbide HSSE Oxide + TiN

ISO: BU783200.5011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU783200.5011
Delivery date: 3-5 days
$126.63

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating Oxide + TiN
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size 3/8"
Thread Limit 2B/3B
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Type NF/UNF/UNEF
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Flutes/Inserts 3
Flute Direction R - Right
Dimension Standard DINSI
Shank/Pilot Dia 0.3810 9.68MM
Overall Len 7.8740 200.00MM
Length Type Long
Tool Material Steel
Thread Pitch 16.00TPI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
