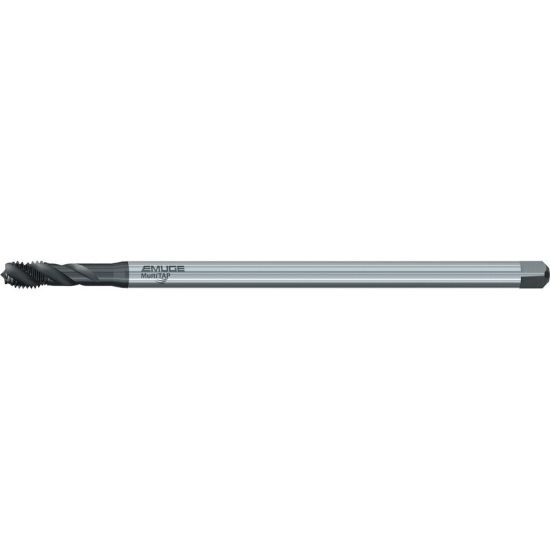

EMUGE BU783200.5009 Tap 1/4-20.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE Oxide + TiN

ISO: BU783200.5009

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU783200.5009
Delivery date: 3-5 days
$98.71

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Tapping, Cut Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating Oxide + TiN
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit 2B/3B
Dimension Standard DINSI
Length Type Long
Tap Chamfer 2.0P-3.0P
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Flutes/Inserts 3
Thread Size 1/4"
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Overall Len 6.2990 159.99MM
Flute Direction R - Right
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
