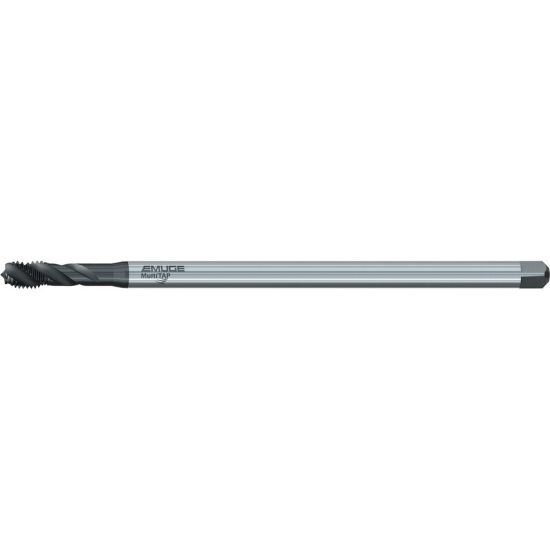

EMUGE BU783200.5007 Tap Mod Bottom No.10-24.00TPI 2B/3B NF/UNF/UNEF DINSI HSSE Oxide + TiN

ISO: BU783200.5007

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU783200.5007
Delivery date: 3-5 days
$66.27

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating Oxide + TiN
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Thread Type NF/UNF/UNEF
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Pitch 24.00TPI
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Overall Len 5.5120 140.00MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Long
Tap Square 0.1520
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
