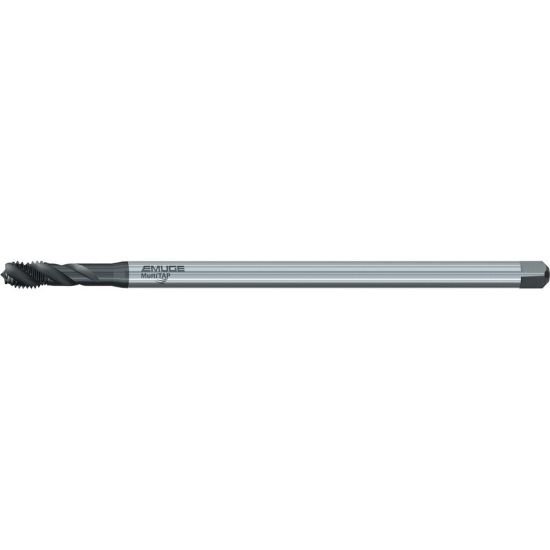

Picture of Emuge BU783200.5007 Tap Mod Bottom No.10-24.00TPI 2B/3B NF/UNF/UNEF DINSI HSSE Oxide + TiN Pulley Long

Emuge BU783200.5007 Tap Mod Bottom No.10-24.00TPI 2B/3B NF/UNF/UNEF DINSI HSSE Oxide + TiN Pulley Long

Part Number: EMUBU783200.5007 ISO: BU783200.5007
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$77.95
SKU: 1157695

Description

EMUGE BU783200.5007 No.10x24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide + TiN 2B/3B NF/UNF/UNEF Steel TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 5.5120 140.00MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Thread Pitch 24.00TPI
Thread Size No.10
Tap Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Tap Square 0.1520
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B/3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Oxide + TiN
Standards & Identification
Dimension Standard DINSI
