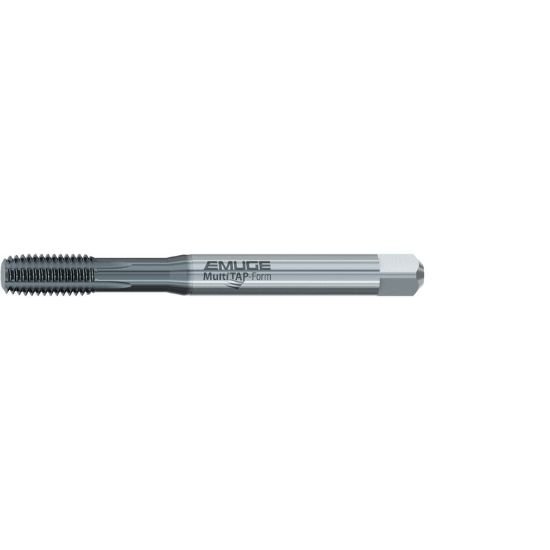

Picture of Emuge BU599010.5039 Tap No.6-40.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSSE TiCN

Emuge BU599010.5039 Tap No.6-40.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSSE TiCN

Part Number: EMUBU599010.5039 ISO: BU599010.5039

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157736
Vendor: Sussex Tool and Supply
$28.65
EMUGE BU599010.5039 No.6x40.00TPI Roll Form Bottoming 1.5P-2.0P HSSE TiCN 2B/3B NF/UNF/UNEF Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating TICN
Overall Length 2.2050 56.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 40.00TPI
Thread Type NF/UNF/UNEF
Flute Direction STRAIGHT
Thread Size No.6
Thread Limit 2B/3B
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard DINSI
Tap Drill Range 0.1252 3.18MM - 0.1283 3.26MM
Tap Square 0.1100
Tap Chamfer 1.5P-2.0P
