  • EMUGE BU591410.5037 Tap No.4-48.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSSE TiN

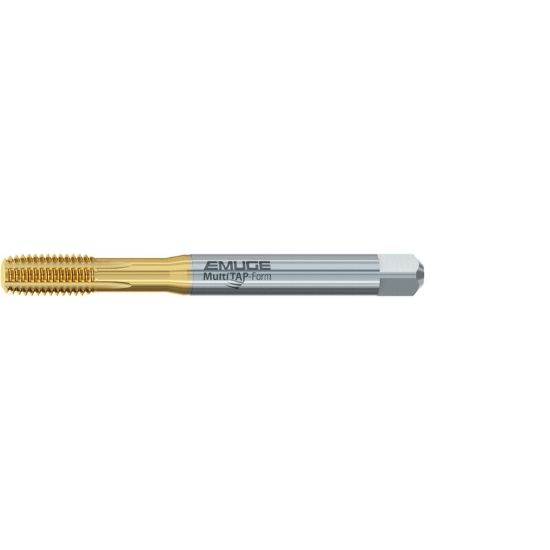

Picture of EMUGE BU591410.5037 Tap No.4-48.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSSE TiN

EMUGE BU591410.5037 Tap No.4-48.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSSE TiN

ISO: BU591410.5037

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU591410.5037
Delivery date: 3-5 days
$32.69

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Roll Form Tapping, Tapping, Bottom Tapping
Coating TiN
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Flute Direction STRAIGHT
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 2.2050 56.01MM
Drill Range 0.1012 2.57MM - 0.1039 2.64MM
Thread Size No.4
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Thread Pitch 48.00TPI
Tap Chamfer 1.5P-2.0P
Tool Material Steel
Thread Limit 2B/3B
Dimension Standard DINSI
Tap Style Roll Form
Tap Square 0.1100
Length Type Standard
Tap Type Bottoming
Thread Type NF/UNF/UNEF
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
