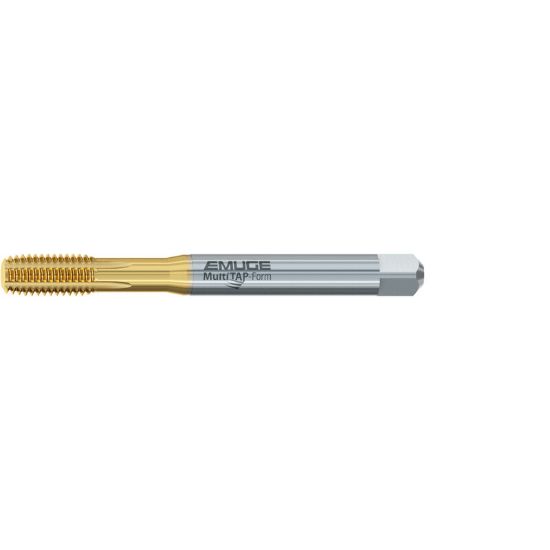

EMUGE BU591410.5008 Tap No.12-24.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE TiN

ISO: BU591410.5008

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU591410.5008
Delivery date: 3-5 days
$27.49

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Massachusetts
Package Size 1
Application Bottom Tapping, Tapping, Roll Form Tapping, Blind Hole Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Drill Range 0.1945 4.94MM - 0.2004 5.09MM
Tap Chamfer 1.5P-2.0P
Thread Size No.12
Thread Type NC/UNC
Thread Limit 2B/3B
Dimension Standard DINSI
Shank/Pilot Dia 0.2200 5.59MM
Overall Len 3.1490 79.98MM
Tap Style Roll Form
Thread Pitch 24.00TPI
Length Type Standard
Tap Type Bottoming
Tool Material Steel
Tap Square 0.1650
Flute Direction STRAIGHT
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
