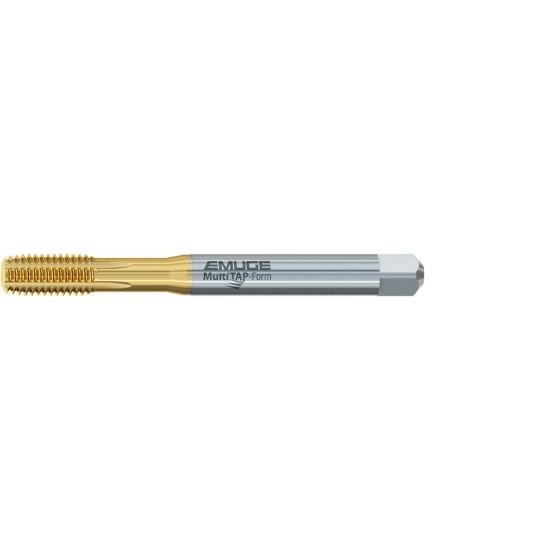

Picture of Emuge BU591410.5041 Tap Bottoming No.10-32.00TPI 2B/3B NF/UNF/UNEF DINSI HSSE TiN

Emuge BU591410.5041 Tap Bottoming No.10-32.00TPI 2B/3B NF/UNF/UNEF DINSI HSSE TiN

Part Number: EMUBU591410.5041 ISO: BU591410.5041

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157760
Vendor: Sussex Tool and Supply
$26.08
EMUGE BU591410.5041 No.10x32.00TPI Roll Form Bottoming 1.5P-2.0P HSSE TiN 2B/3B NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating TIN
Overall Length 2.7560 70.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Flute Direction STRAIGHT
Thread Size No.10
Thread Limit 2B/3B
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard DINSI
Tap Drill Range 0.1740 4.42MM - 0.1780 4.52MM
Tap Square 0.1520
Tap Chamfer 1.5P-2.0P
