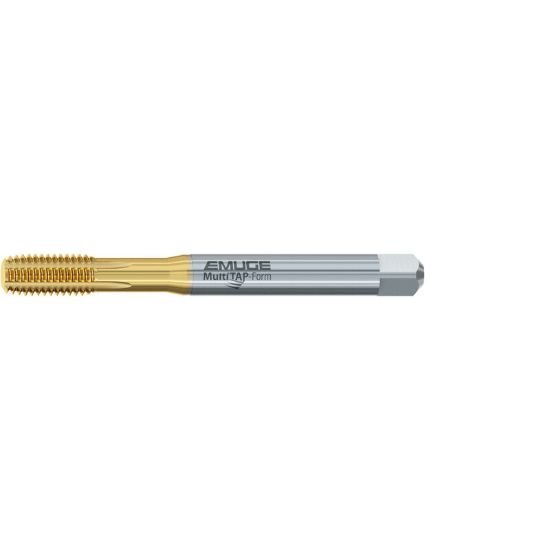

Picture of Emuge BU591410.5008 Tap No.12-24.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE TiN

Emuge BU591410.5008 Tap No.12-24.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE TiN

Part Number: EMUBU591410.5008 ISO: BU591410.5008

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157752
Vendor: Sussex Tool and Supply
$28.00
EMUGE BU591410.5008 No.12x24.00TPI Roll Form Bottoming 1.5P-2.0P HSSE TiN 2B/3B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating TIN
Overall Length 3.1490 79.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2200 5.59MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 24.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size No.12
Thread Limit 2B/3B
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard DINSI
Tap Drill Range 0.1945 4.94MM - 0.2004 5.09MM
Tap Square 0.1650
Tap Chamfer 1.5P-2.0P
