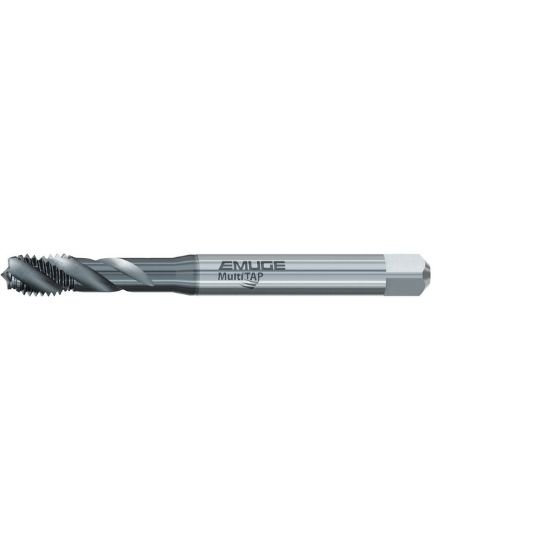

Picture of Emuge BU539300.0040 Tap Mod Bottom M4-0.70mm 6H Metric DINSI HSSE TiCN

Emuge BU539300.0040 Tap Mod Bottom M4-0.70mm 6H Metric DINSI HSSE TiCN

Part Number: EMUBU539300.0040 ISO: BU539300.0040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157510
Vendor: Sussex Tool and Supply
$26.64
EMUGE BU539300.0040 M4x0.70MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiCN 6H Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating TICN
Overall Length 2.4850 63.12MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.70MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M4
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1310
Tap Chamfer 2.0P-3.0P
