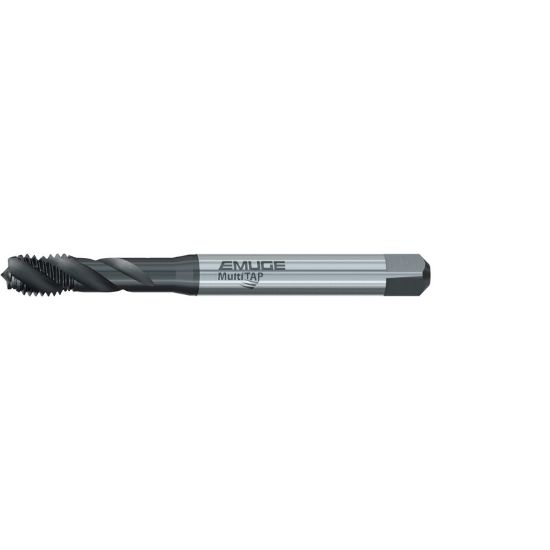

EMUGE BU533200.5045 Tap 3/8-24.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Carbide HSSE Oxide + TiN

ISO: BU533200.5045

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU533200.5045
Delivery date: 3-5 days
$28.70

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Tapping, Cut Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Coating Oxide + TiN
Dimensional Specifications
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Type NF/UNF/UNEF
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Thread Pitch 24.00TPI
Flutes/Inserts 3
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size 3/8"
Thread Limit 2B/3B
Dimension Standard DINSI
Shank/Pilot Dia 0.3810 9.68MM
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
