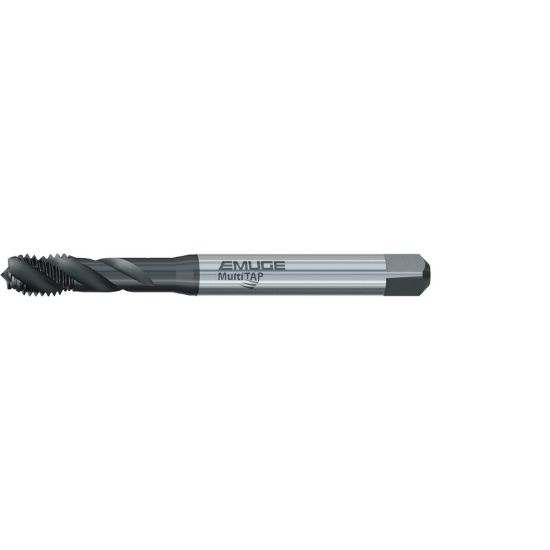

EMUGE BU533200.5044 Tap 5/16-24.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSS HSSE Oxide + TiN

ISO: BU533200.5044

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU533200.5044
Delivery date: 3-5 days
$25.62

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Coating Oxide + TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Pitch 24.00TPI
Flutes/Inserts 3
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Thread Size 5/16"
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 3.5430 89.99MM
Length Type Standard
Tap Square 0.2380
Thread Type NF/UNF/UNEF
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
