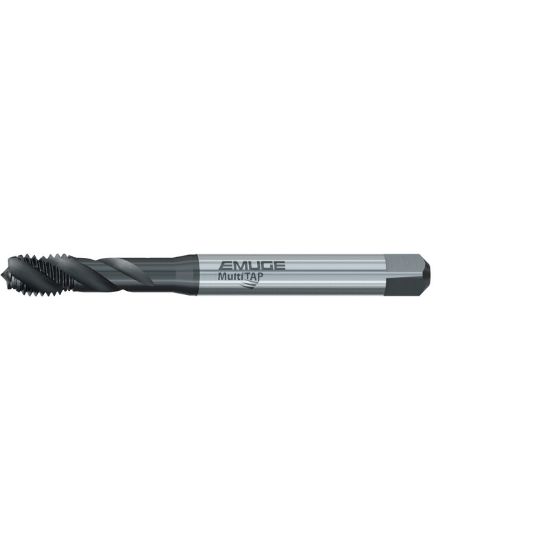

EMUGE BU533200.5011 Tap 3/8-16.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE Oxide + TiN

ISO: BU533200.5011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU533200.5011
Delivery date: 3-5 days
$28.70

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Coating Oxide + TiN
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 3
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Thread Size 3/8"
Thread Type NC/UNC
Thread Limit 2B/3B
Dimension Standard DINSI
Shank/Pilot Dia 0.3810 9.68MM
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Pitch 16.00TPI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
