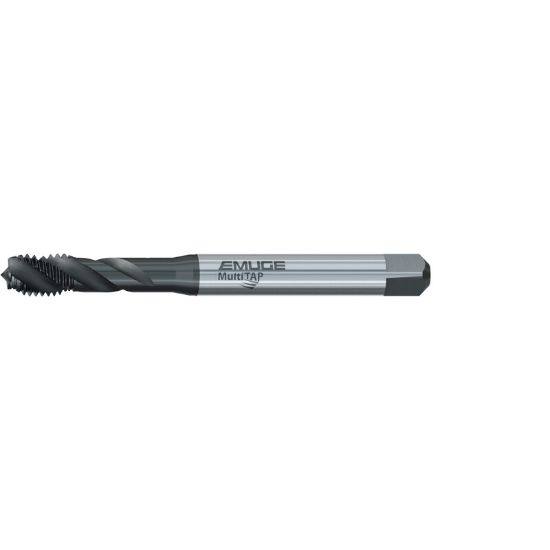

EMUGE BU533200.5008 Tap Mod Bottom No.12-24.00TPI 2B/3B NC/UNC DINSI HSSE Oxide + TiN

ISO: BU533200.5008

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU533200.5008
Delivery date: 3-5 days
$23.29

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Massachusetts
Coating Oxide + TiN
Made In USA No
Package Size 1
Dimensional Specifications
Thread Pitch 24.00TPI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Machine Side Connection Type Tap Collet
Drill Range 0.1724 4.38MM - 0.1835 4.66MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tool Material Steel
Tap Square 0.1650
Flutes/Inserts 3
Flute Direction R - Right
Length Type Standard
Thread Size No.12
Thread Type NC/UNC
Thread Limit 2B/3B
Dimension Standard DINSI
Shank/Pilot Dia 0.2200 5.59MM
Overall Len 3.1490 79.98MM
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
