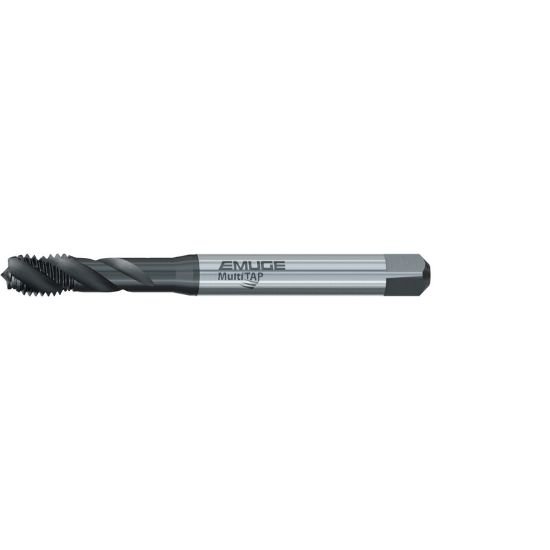

Picture of Emuge BU533200.5011 Tap 3/8-16.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE Oxide + TiN

Emuge BU533200.5011 Tap 3/8-16.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE Oxide + TiN

Part Number: EMUBU533200.5011 ISO: BU533200.5011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157551
Vendor: Sussex Tool and Supply
$29.21
EMUGE BU533200.5011 3/8"x16.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide + TiN 2B/3B NC/UNC Steel TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating Oxide + TiN
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 16.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit 2B/3B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Square 0.2860
Tap Chamfer 2.0P-3.0P
