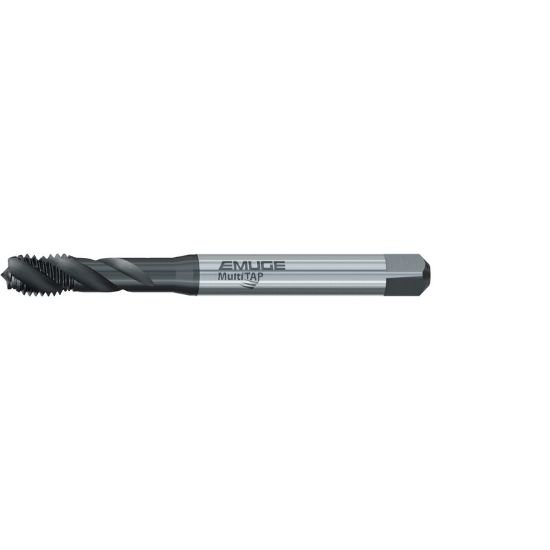

Picture of Emuge BU533200.0100 Tap Mod Bottom M10-1.50mm 6H Metric DINSI HSSE Oxide + TiN

Emuge BU533200.0100 Tap Mod Bottom M10-1.50mm 6H Metric DINSI HSSE Oxide + TiN

Part Number: EMUBU533200.0100 ISO: BU533200.0100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157494
Vendor: Sussex Tool and Supply
$32.16
EMUGE BU533200.0100 M10x1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide + TiN 6H Metric Steel TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating Oxide + TiN
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M10
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Square 0.2860
Tap Chamfer 2.0P-3.0P
