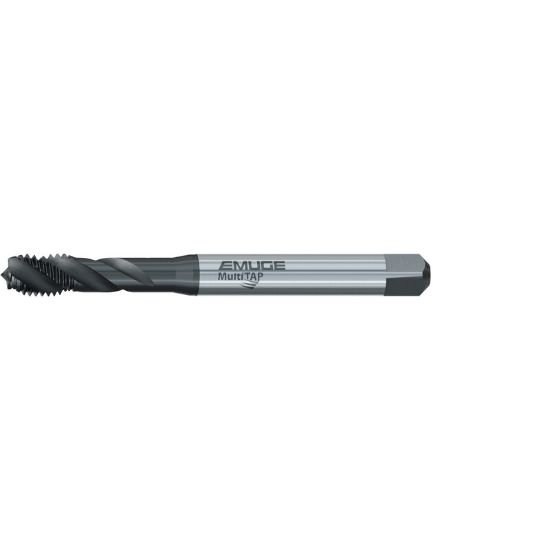

Picture of Emuge BU533200.0080 Tap Mod Bottom M8-1.25mm 6H Metric DINSI HSSE Oxide + TiN

Emuge BU533200.0080 Tap Mod Bottom M8-1.25mm 6H Metric DINSI HSSE Oxide + TiN

Part Number: EMUBU533200.0080 ISO: BU533200.0080
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$34.01
SKU: 1157493

Description

EMUGE BU533200.0080 M8x1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide + TiN 6H Metric Steel TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.5430 89.99MM
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Thread Pitch 1.25MM
Thread Size M8
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2380
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Oxide + TiN
Standards & Identification
Dimension Standard DINSI
