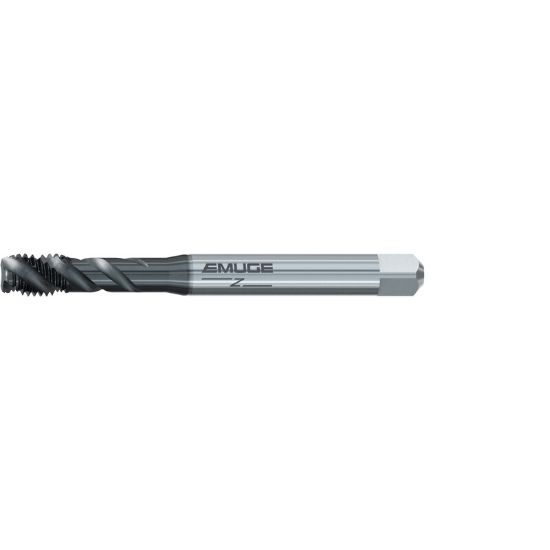

EMUGE BU51C400.5658 Tap No.6-32.00TPI Bottoming LK-UNC DINSI 1.5P-2.0P Cobalt HSSE GLT-1

ISO: BU51C400.5658

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU51C400.5658
Delivery date: 3-5 days
$73.93

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Bottom Tapping, Tapping, Blind Hole Tapping, Spiral Lock Tapping
Performance Rating High Performance
Coating GLT-1
Shipping State Massachusetts
Dimensional Specifications
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Thread Type LK-UNC
Flute Direction R - Right
Tap Square 0.1100
Length Type Standard
Tap Type Bottoming
Tap Style Spiral Lock
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Thread Pitch 32.00TPI
Overall Len 2.2050 56.01MM
Thread Size No.6
Thread Limit BT
Tool Material Steel
Drill Range 0.1142 2.90MM
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Agricultural YES
Energy Yes
