  • EMUGE BU51C400.5036 Tap No.3-56.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSSE GLT-1

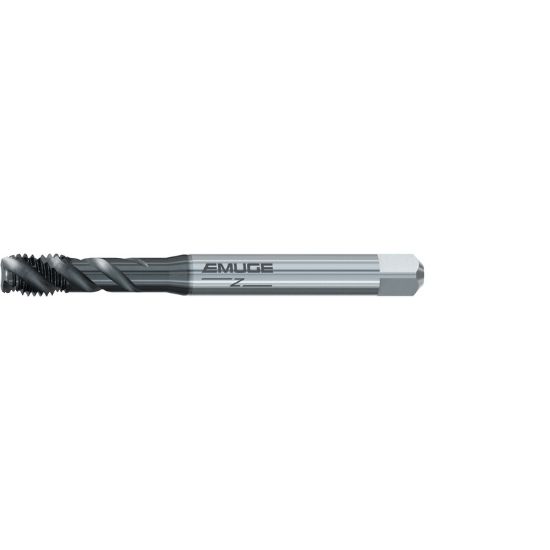

Picture of EMUGE BU51C400.5036 Tap No.3-56.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSSE GLT-1

EMUGE BU51C400.5036 Tap No.3-56.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSSE GLT-1

ISO: BU51C400.5036

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU51C400.5036
Delivery date: 3-5 days
$70.43

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating GLT-1
Dimensional Specifications
Thread Pitch 56.00TPI
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Flute Direction R - Right
Dimension Standard DINSI
Flutes/Inserts 2
Length Type Standard
Tap Type Bottoming
Thread Limit 2B
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Overall Len 1.9700 50.04MM
Thread Type NF/UNF/UNEF
Tool Material Steel
Tap Square 0.1100
Thread Size No.3
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.0803 2.04MM - 0.0850 2.16MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
